Haven8 Side Panels, In-Line Panels, Extension Profile

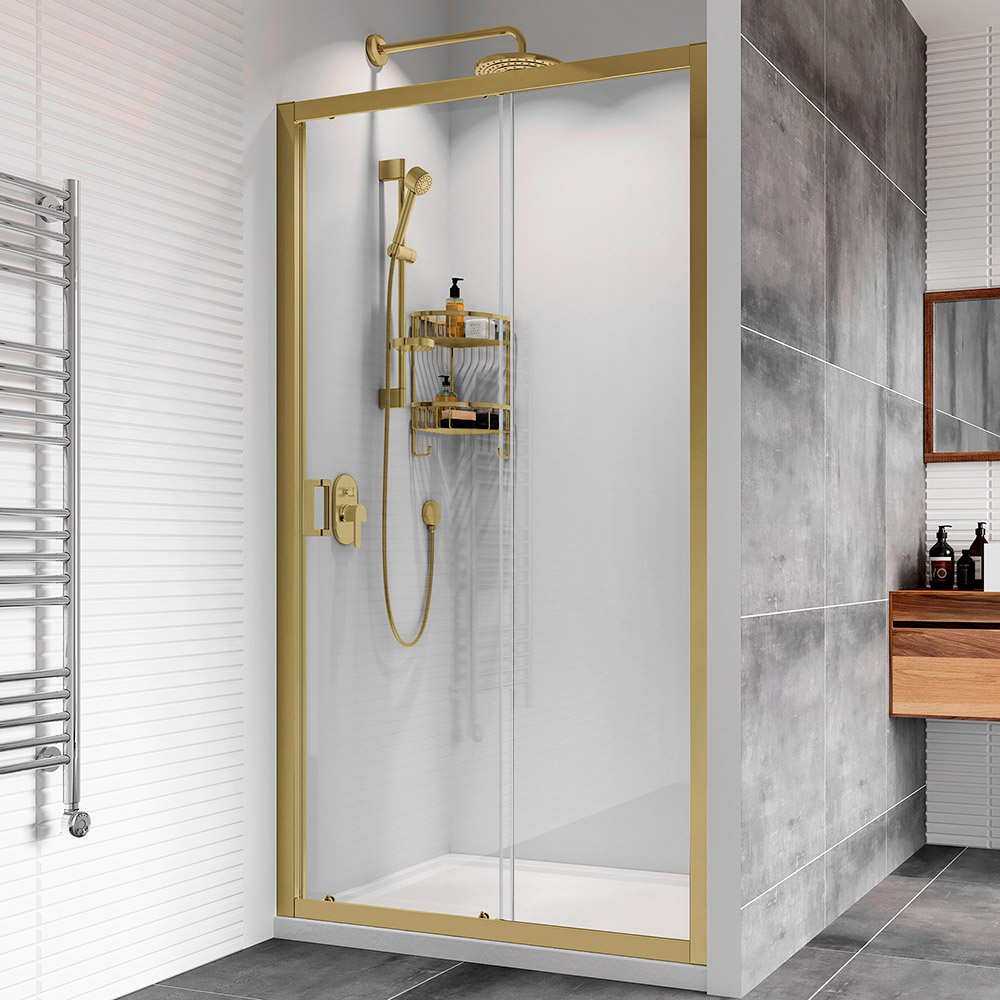

The Haven8 Side Panels are compatible with the Haven8 Bi-Fold, Haven 8 Pivot and Haven8 Sliding Doors.
Full Product Description
Haven8 Side Panels, In-Line Panels, Extension Profile
The Haven8 Side Panels and In-Line Panels are compatible with the Haven Bi-Fold, the Haven Pivot and the Haven Sliding Doors.
They feature the three colours options; Polished Chrome, Matt Black and Brushed Brass with clear glass, to ensure they will blend in with most decors.
Available in Polished Chrome, Matt Black and Brushed Brass.
Technical Information
Technical Information for theHaven8 Side Panels, In-Line Panels, Extension Profile
- Height: 1950mm
- Glass Thickness: 8mm
- Chromed plastic top caps
- Reversible for left or right hand fixing
- Available colours - Polished Chrome, Matt Black and Brushed Brass
Attributes
Available Product Downloads
Below you will find a list of associated attributes regarding theHaven8 Side Panels, In-Line Panels, Extension Profile.
Description
Size
(mm)
Adjustment
(mm)
Polished Chrome Code
Matt Black Code
Brushed Brass Code
Side Panel
700
640-690
H4R7CS
H4R7CB
H4R7CBR
Side Panel
760
710 - 735
H4R76CS
H4R76CB
H4R76CBR
Side Panel
800
750 - 775
H4R8CS
H4R8CB
H4R8CBR
Side Panel
900
850 - 875
H4R9CS
H4R9CB
H4R9CBR
Side Panel
1000
950 - 975
H4R10CS
H4R10CB
H4R10CBR
In-line Panel
200
+ 200mm to door sizes
H4HL2CS
H4HL2CB
H4HL2CBR
In-line Panel
300
+ 300mm to door sizes
H4HL3CS
H4HL3CB
H4HL3CBR

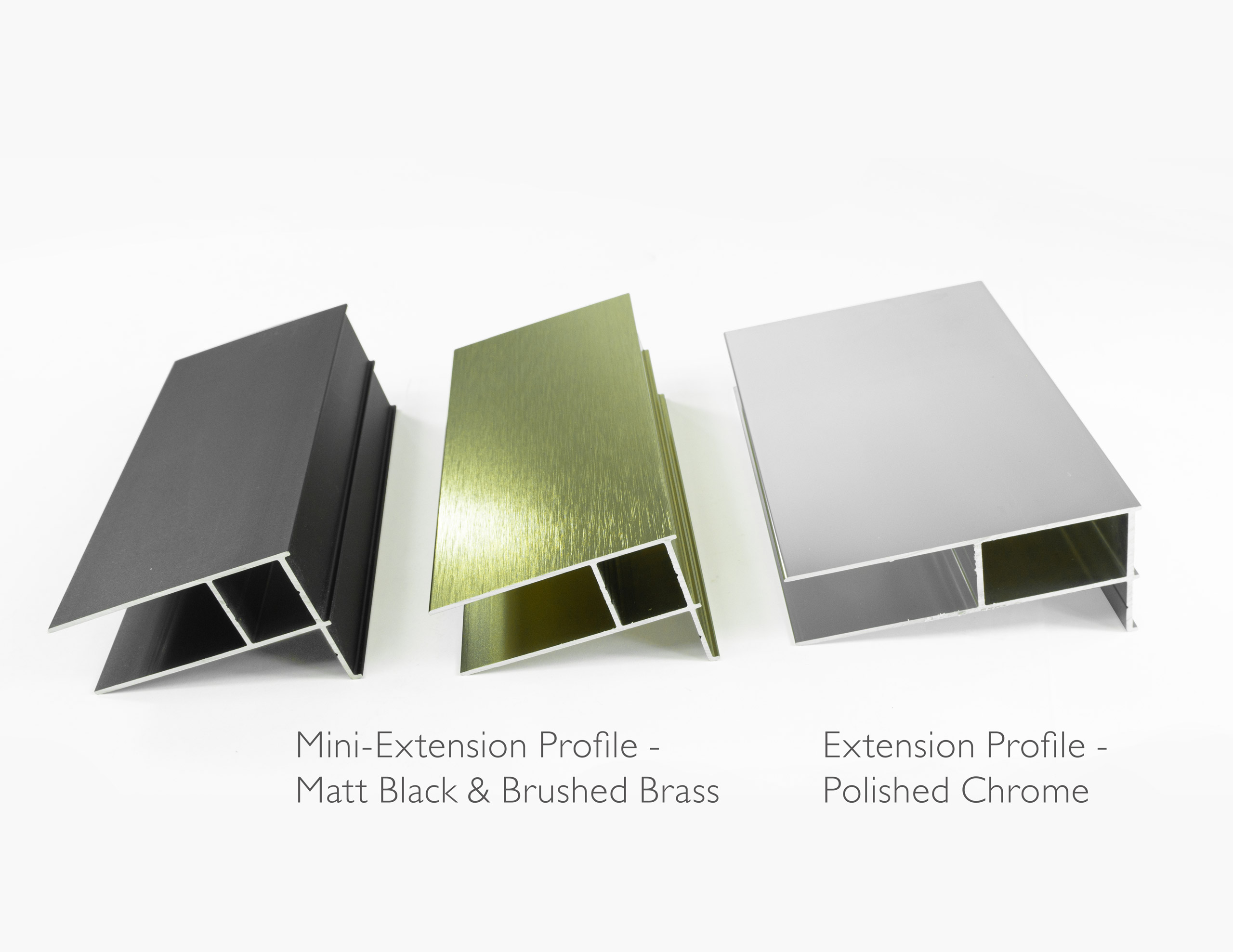

Extension Profile
1950 High
35mm extra
H4ZEX2S
H4ZEX2B
H4ZEX2BR
Mini-Extension Profile
1950 High
25mm extra
H4ZEX3S
H4ZEX3B
H4ZEX3BR
Instructions / Information Downloads
Available Product Downloads
Below you will find a list of associated instruction manuals, brochures and any other relevant information regarding theHaven8 Side Panels, In-Line Panels, Extension Profile.
File Name
File Size
Download
