Haven8 One Door Quadrant Shower Enclosure

The Haven8 One Door Quadrant Shower Enclosure is an ideal solution for smaller bathrooms as it will sit beautifully in the corner of your bathroom.

Full Product Description

Haven8 One Door Quadrant Shower Enclosure

The Haven8 One Door Quadrant is an ideal showering solution when side entry is more practical for the smaller bathroom.

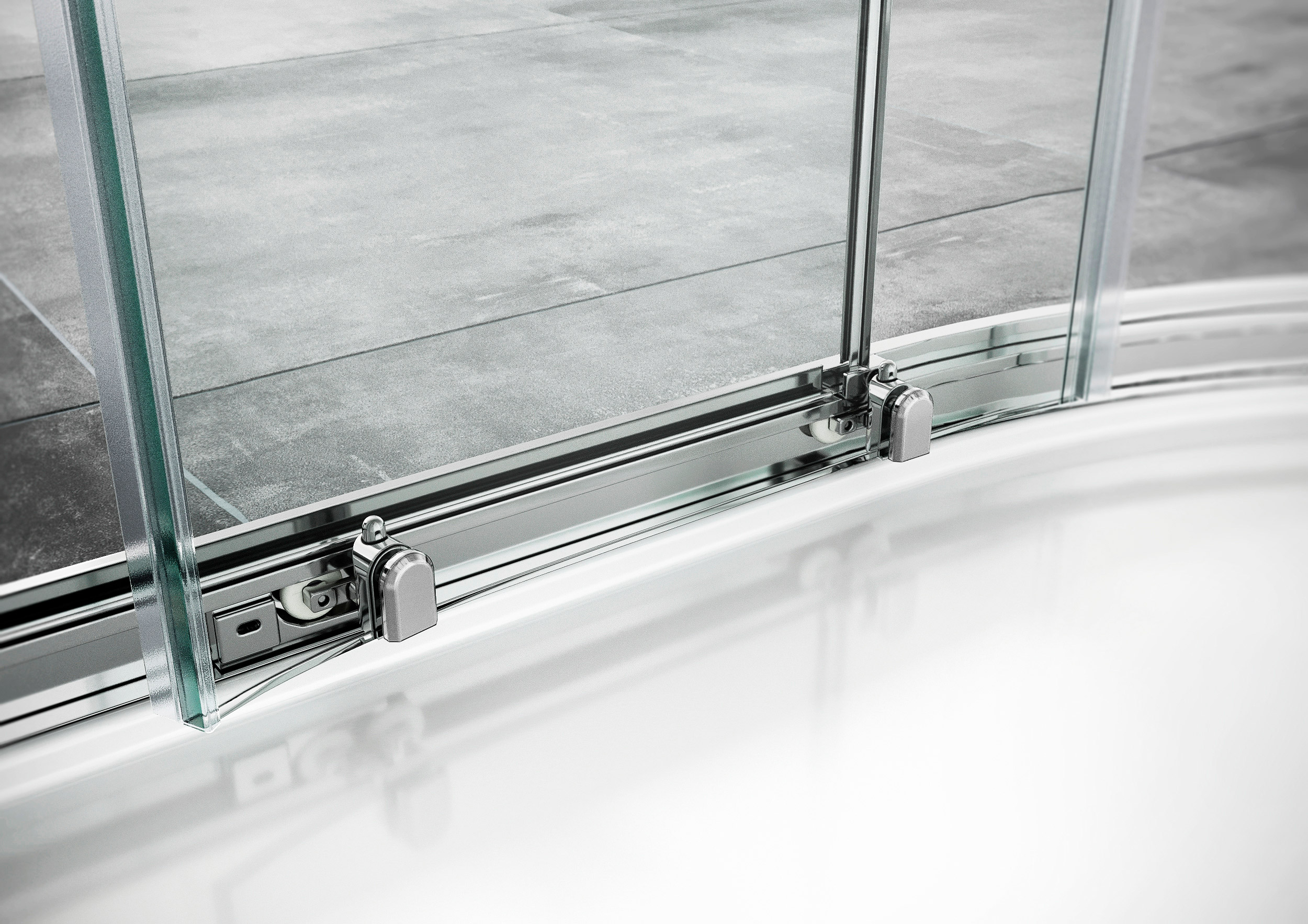

The Curved Shower Enclosure stands majestically at a height of 1950mm with toughened 8mm thick safety glass. A contemporary feature of the One Door Quad Enclosure is the chromed brass ergonomic handle, which has a curved underside for easy operation. The weight of the 8mm thick glass and smooth running roller bearings provides an effortless action sliding door. The smooth running roller bearings incorporate a ‘quick release’ door system for easy access cleaning.

The Haven 8 Quadrants are complete with ‘minimal’ low profile seals and bright silver frames to create the ultimate minimalistic look.

The Haven8 One Door Quadrant can be installed straight to floor as a true wetroom, or to a low level Roman Shower Tray, both of these options capture the minimalist look and eliminate the step up into the enclosure for easy access. The One Door Quadrant Shower Enclosure is available in an offset shape for a larger showering area where space allows.

The Haven8 range also offers a Two Door Quadrant Shower Enclosure, which incorporates two sliding doors for an intelligent space saving tactic.

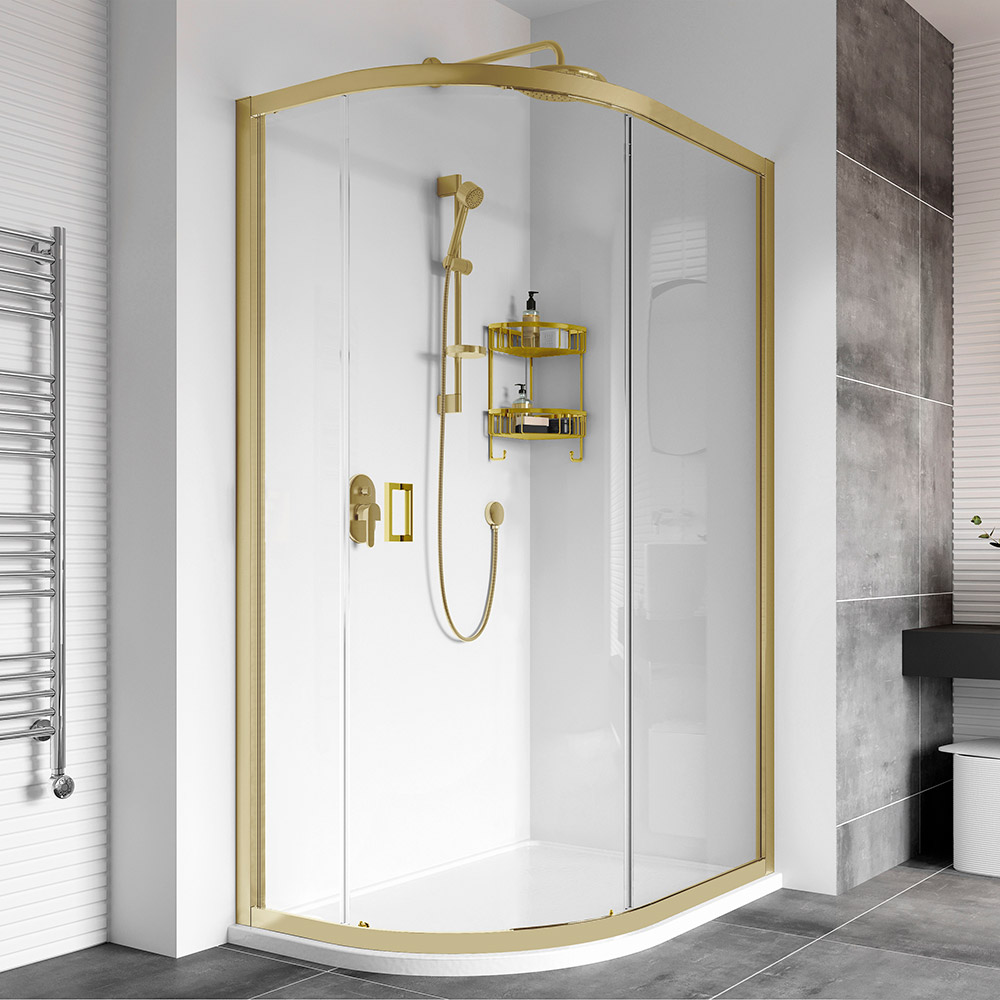

It is available in Polished Chrome, Matt Black and Brushed Brass.



Ultra Care Glass Protection

Technical Information

Technical Information for theHaven8 One Door Quadrant Shower Enclosure

  • Height: 1950mm
  • Glass thickness: 8mm
  • Vertical adjustment: 25mm in each profile
  • Tray compatibility: tray or straight to floor using Roman Shield Wetroom System
  • Chromed brass feature handle
  • ‘Minimal’ low profile seals
  • Smooth running ‘quick release’ roller bearings for easy cleaning
  • Reversible for left or right hand fitting
  • Roman Ultra Care glass protection pre-coating included as standard
  • Available colours - Polished Chrome, Matt Black and Brushed Brass

Attributes

Available Product Downloads

Below you will find a list of associated attributes regarding theHaven8 One Door Quadrant Shower Enclosure.

Description
Size (mm)
Aperture (mm)
Adjustment (mm)
Polished Chrome Code
Matt Black Code
Brushed Brass Code
One Door Quadrant
800 x 800
425
750 - 775
H4SQ8CS
-
-
One Door Quadrant
900 x 900
525
850 - 875
H4SQ9CS
H4SQ9CB
H4SQ9CBR
One Door Offset Quadrant
800 x 900
425
750 - 775 & 850 - 875
H4SQ89CS
-
-
One Door Offset Quadrant
800 x 1000
425
750 - 775 & 950 - 975
H4SQ810CS
H4SQ810CB
H4SQ810CBR
One Door Offset Quadrant
800 x 1200
425
750 - 775 & 1150 - 1175
H4SQ812CS
-
-
One Door Offset Quadrant
900 x 1200
525
850 - 875 & 1150 - 1175
H4SQ912CS
-
-

Instructions / Information Downloads

Available Product Downloads

Below you will find a list of associated instruction manuals, brochures and any other relevant information regarding theHaven8 One Door Quadrant Shower Enclosure.

File Name
File Size
Download
Haven8 One Door Quadrant - Instructions
1.64MB
Haven8 One Door Quadrant Datasheet
641.09KB
