Haven8 Inswing Door

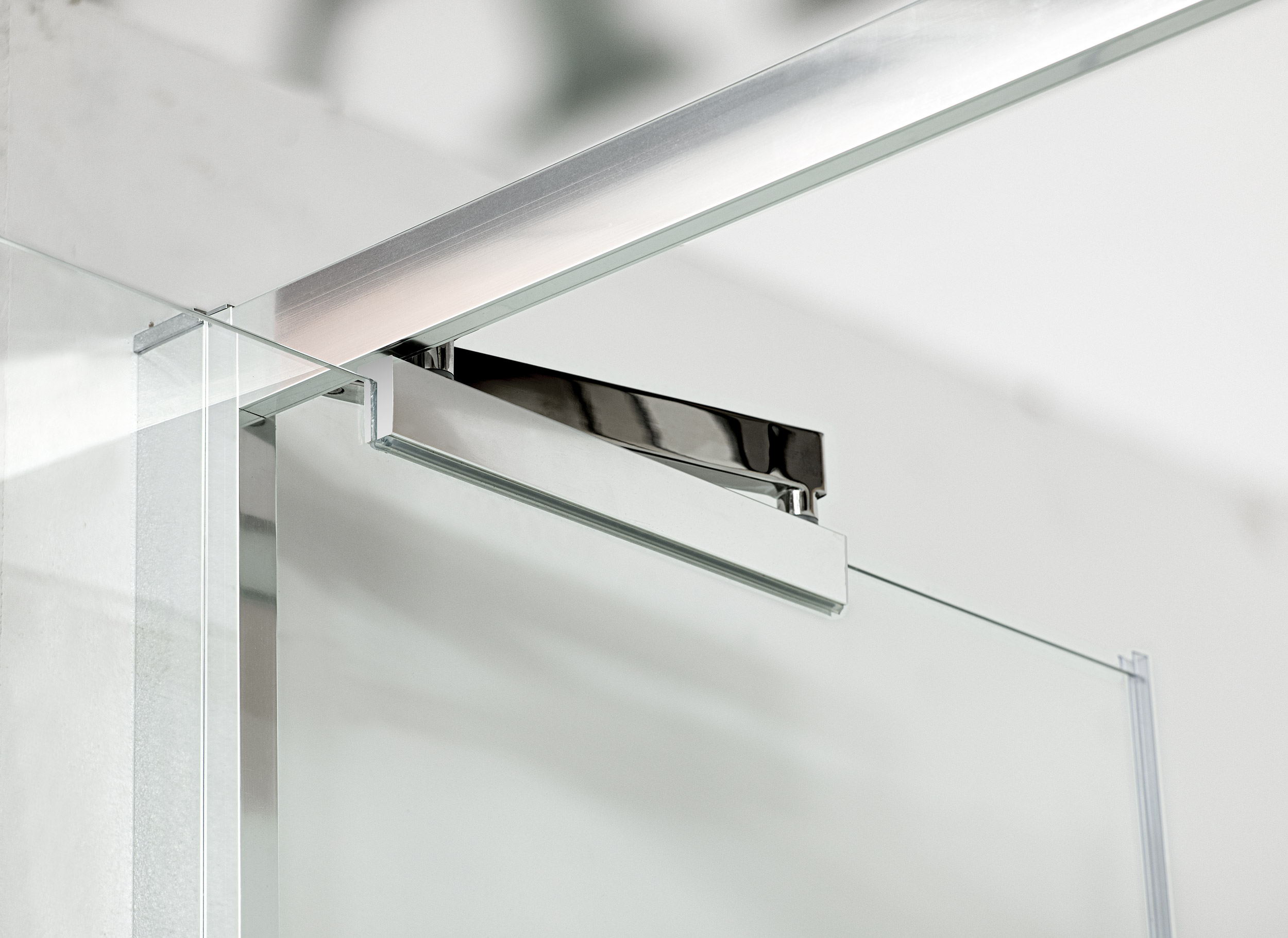

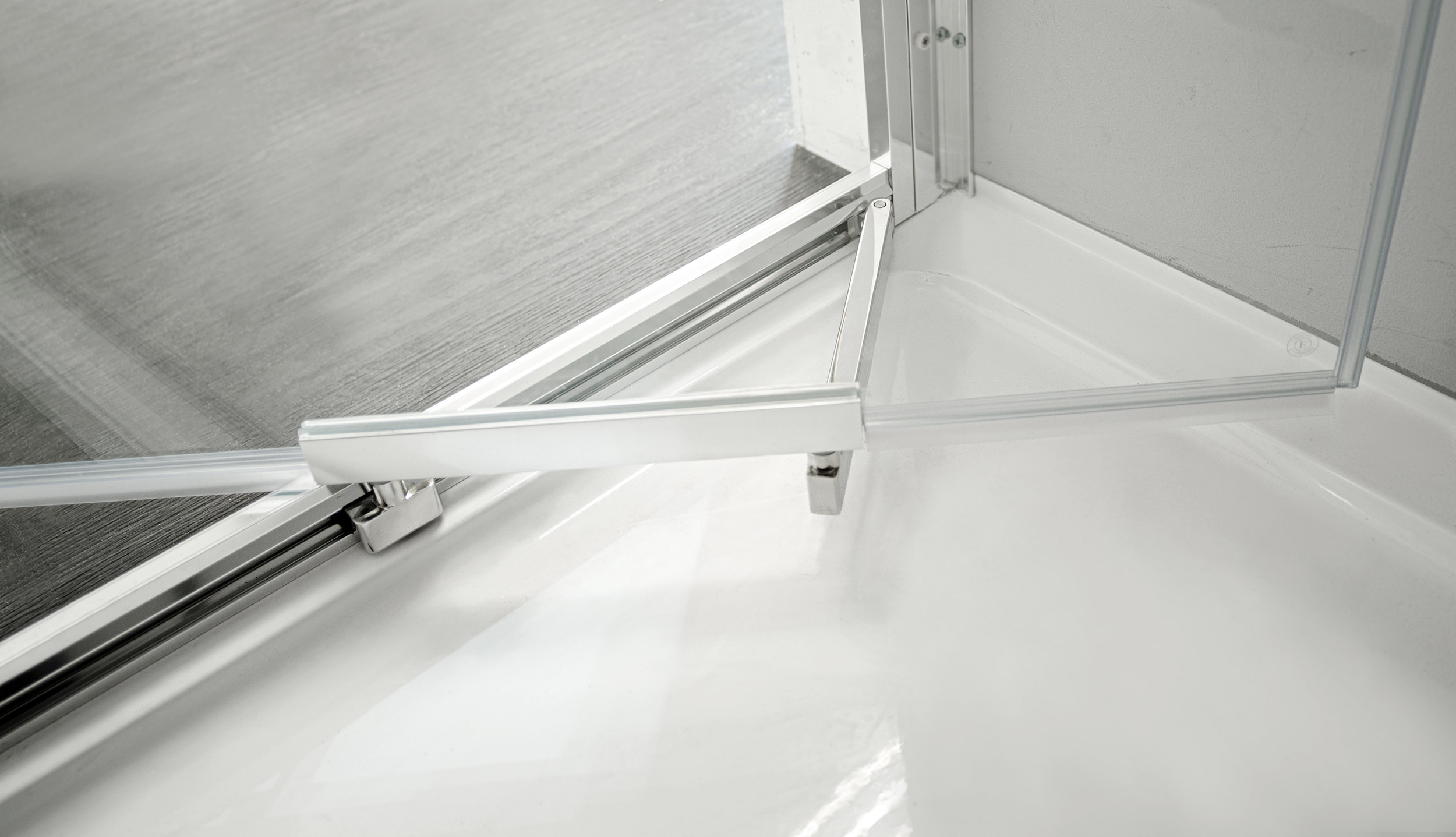

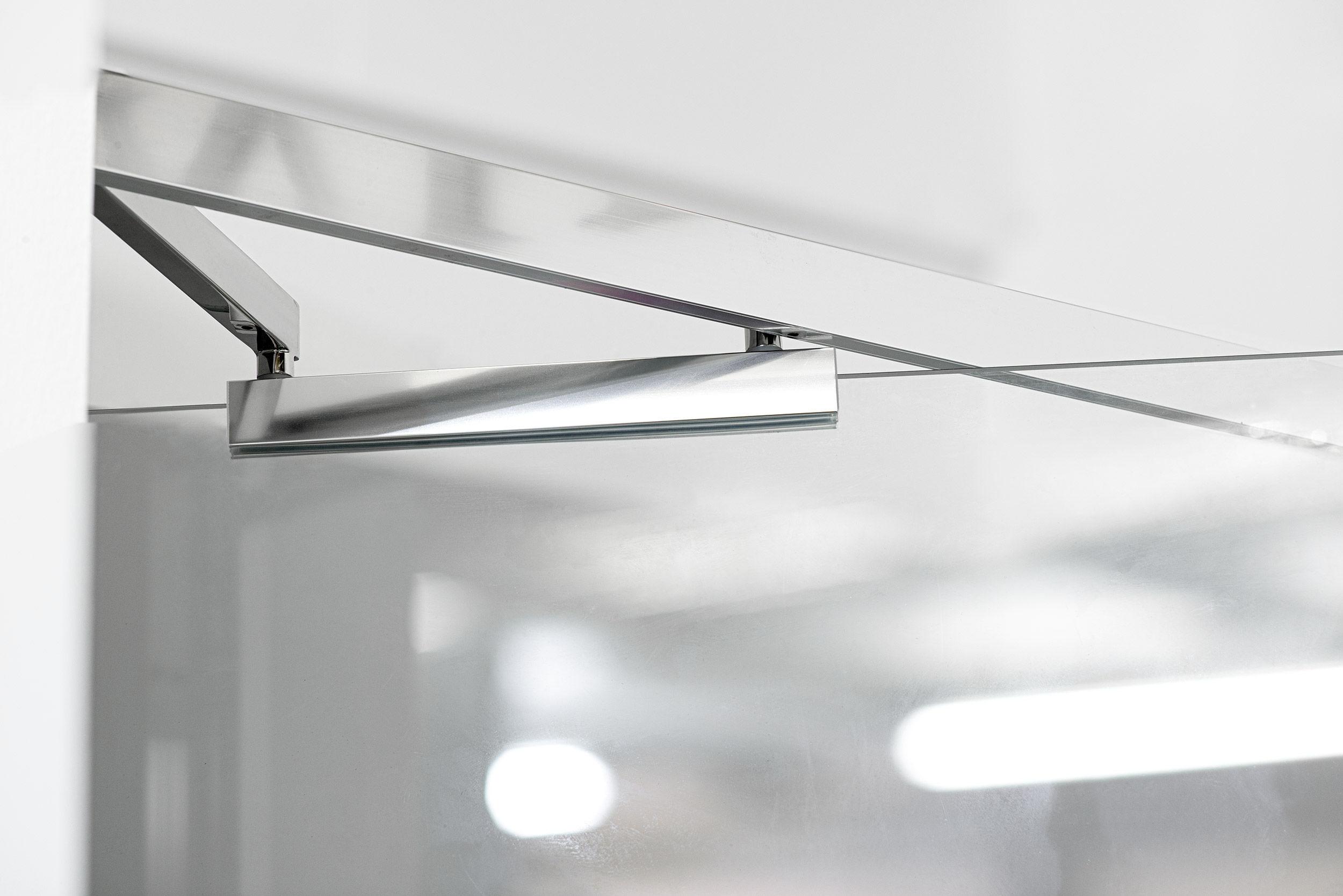

This cleverly designed Inswing Door is ideal for a confined shower space or small ensuite where protrusion into the room needs to be minimal. The mechanism means that the door effectively opens one third into the room and two thirds remains inside the showering space.

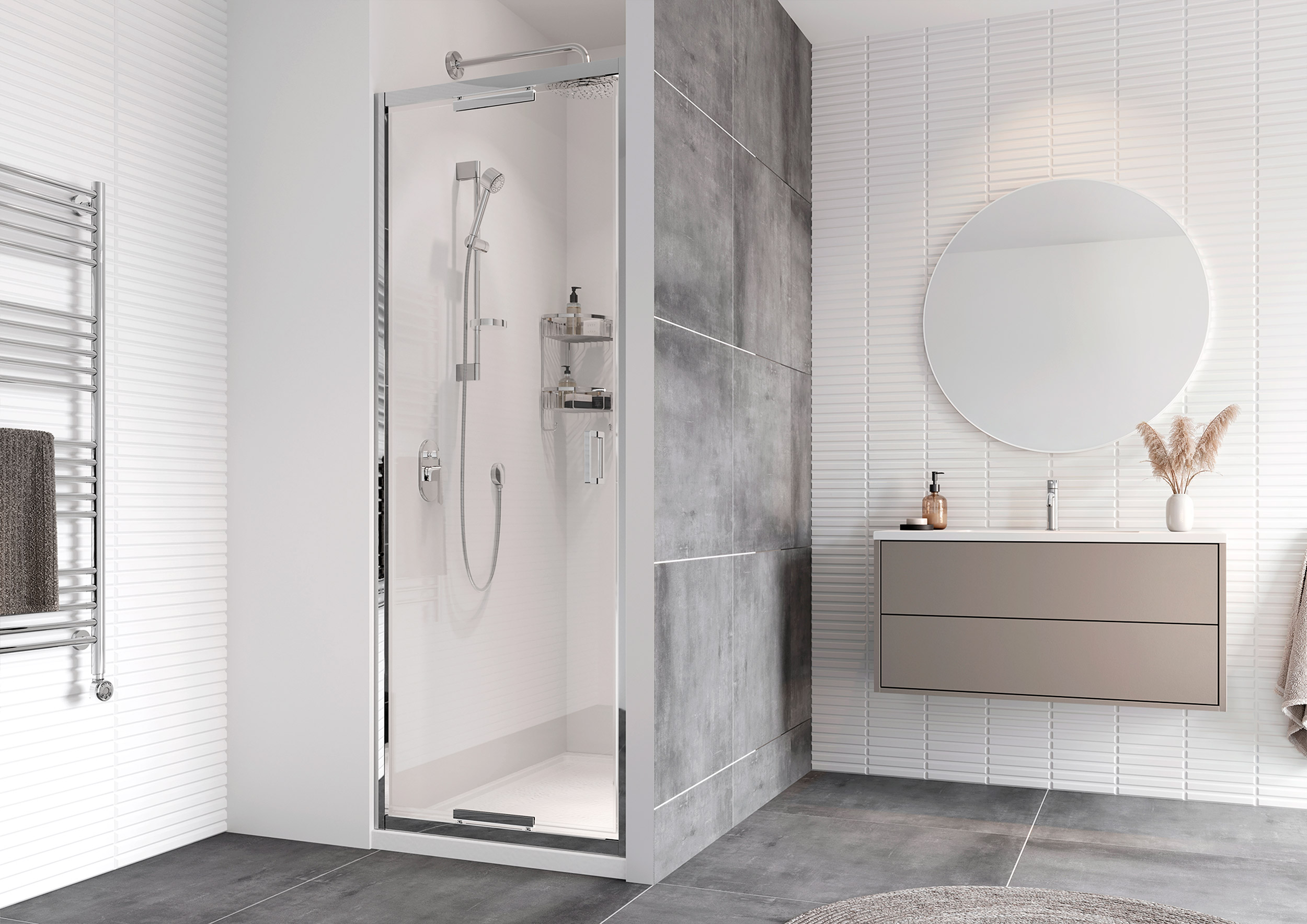

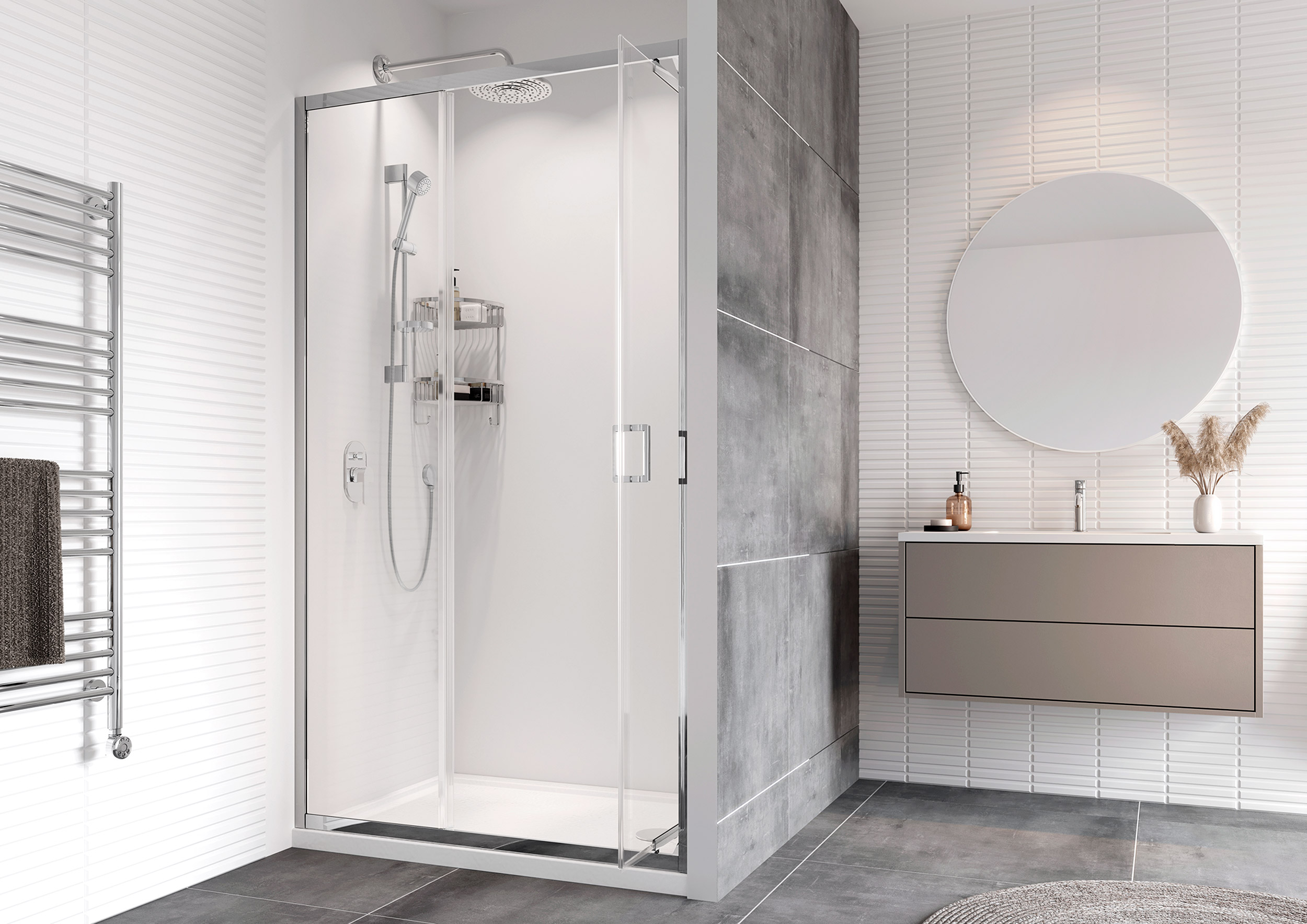

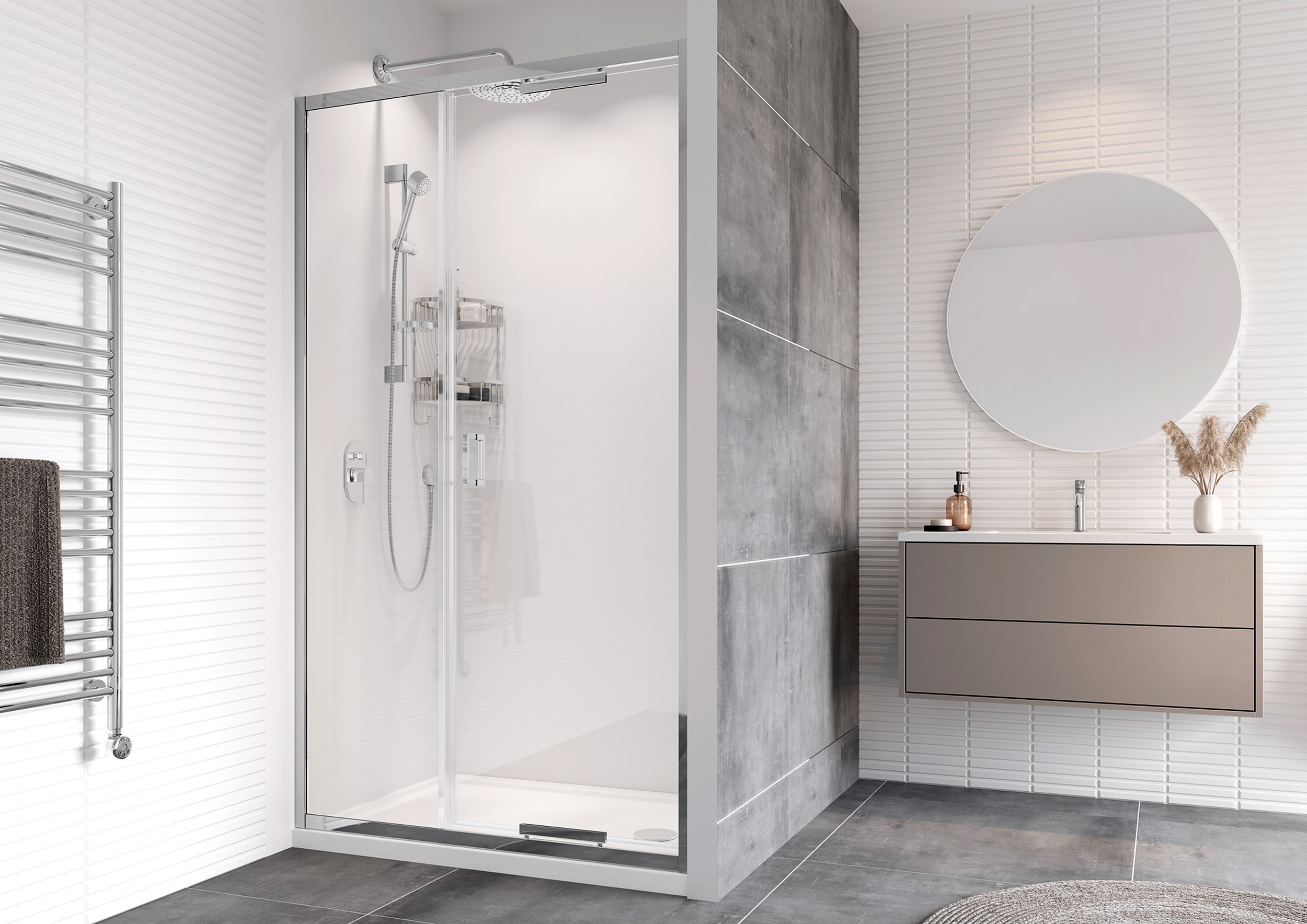

The 800mm, 900mm and 1000mm units are one-piece doors offering large access space; whilst the 1200mm option features an integrated Inline Panel.
A dedicated Side Panel is available in three sizes should corner installation be required.
Technical Information
Technical Information for theHaven8 Inswing Door
- Height:1950mm
- Glass thickness: 6mm
- Minimal projection into bathroom space.
- Chromed plastic end and top caps.
- Smooth inward opening door operation.
- Maximised opening for easy shower access.
- Reversible for left or right hand fixing.
Attributes
Available Product Downloads
Below you will find a list of associated attributes regarding theHaven8 Inswing Door.
Description
Size
(mm)
Aperture
(mm)
Adjustment (mm)
Alcove Fitting
Adjustment (mm)
Corner Fitting
Polished Chrome Code
Matt Black Code
Brushed Brass Code
Inswing Door
800
610
750 - 790
770 - 790
H4I8CS
H4I8CB
H4I8CBR
Inswing Door
900
710
850 - 890
870 - 890
H4I9CS
H4I9CB
H4I9CBR
Inswing Door
1000
810
950 - 990
970 - 990
H4I10CS
H4I10CB
H4I10CBR
Inswing Door
1200*
573
1150 - 1190
1170 - 1190
H4I12CS
H4I12CB
H4I12CBR
Side Panel
760
-
-
730 - 750
H4IR76CS
H4IR76CB
H4IR76CBR
Side Panel
800
-
-
770 - 790
H4IR8CS
H4IR8CB
H4IR8CBR
Side Panel
900
-
-
870 - 890
H4IR9CS
H4IR9CB
H4IR9CBR
